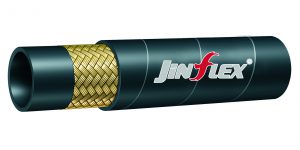

Wire Braided Hydraulic Hose-SAE 100R1AT-jinflex
Hose Construction：
Inner tube：oil resistant synthetic rubber
Reinforcement：one high tensile steel wire braid
Cover：oil, abrasion, weather resistant synthetic rubber
Working Temp：-40℃ up to +121℃
Applications：
Medium pressure hydraulic application including mobile, machine tool and agricutural application, using petroleum or water based hydraulic fluids.
|
I.D |
W.D. |
O. D |
W.P |
P.P. |
B. P |
Min.B.R. |
Weight |
||
|
inch |
mm |
mm |
mm |
psi |
bar |
bar |
bar |
mm |
kg/m |
|
3/16 |
4.6 – 5.4 |
8.9 – 10.1 |
11.9 – 12.5 |
3045 |
210 |
420 |
840 |
89 |
0.2 |
|
1/4 |
6.2 – 7.0 |
10.8 – 11.4 |
12.7 -13.5 |
2784 |
192 |
384 |
768 |
102 |
0.25 |
|
5/16 |
7.7 – 8.5 |
12.5 – 13.1 |
14.6 – 15.4 |
2538 |
175 |
350 |
700 |
114 |
0.31 |
|
3/8 |
9.3 – 10.1 |
14.5 – 15.1 |
16.7 – 17.5 |
2277 |
157 |
314 |
628 |
127 |
0.36 |
|
1/2 |
12.3-13.5 |
17.7-18.3 |
19.8 – 20.6 |
2030 |
140 |
280 |
560 |
178 |
0.45 |
|
5/8 |
15.5-16.7 |
21.1 – 21.7 |
23.2 – 24.0 |
1523 |
105 |
210 |
420 |
203 |
0.52 |
|
3/4 |
18.6-19.8 |
24.6 – 25.4 |
26.9-27.7 |
1262 |
87 |
174 |
348 |
241 |
0.65 |
|
1 |
25.0-26.4 |
32.1 – 32.9 |
34.6-35.4 |
1015 |
70 |
140 |
280 |
305 |
0.91 |
|
1-1/4 |
31.4-33.0 |
40.8 – 41.6 |
43.3-44.1 |
624 |
43 |
86 |
172 |
419 |
1.3 |
|
1-1/2 |
37.7-39.3 |
47.2 – 48.0 |
49.7-50.5 |
508 |
35 |
70 |
140 |
508 |
1.7 |
|
2 |
50.4-52.0 |
59.9 – 60.7 |
62.4-63.2 |
377 |
26 |
52 |
104 |
635 |
2 |
